Available in constant current and constant voltage options, MEGAMAN® LED converters are designed to optimise the performance of its LED reflector.
-
LD0424x1v-C700
Height (mm): 35
Lamp Life (hrs): 50000
Mains Voltage (V): 220-240
Input Voltage Range (V): 180-260
Output Current (mA): 700
Lamp Wattage (W): 24
Length (mm): 123
Width (mm): 79
Details -
LD0310x1v-C500
Height (mm): 32
Lamp Life (hrs): 50000
Mains Voltage (V): 120-240
Input Voltage Range (V): 120-240
Output Current (mA): 500
Lamp Wattage (W): 10
Length (mm): 147
Width (mm): 50
Details -
LD0217x1v-C500
Height (mm): 25
Lamp Life (hrs): 50000
Mains Voltage (V): 220-240
Input Voltage Range (V): 180-260
Output Current (mA): 500
Lamp Wattage (W): 17
Length (mm): 116
Width (mm): 55
Details -
LD0115x1v-C380
Height (mm): 32
Lamp Life (hrs): 50000
Mains Voltage (V): 120-240
Input Voltage Range (V): 100-240
Output Current (mA): 380
Lamp Wattage (W): 15
Length (mm): 147
Width (mm): 50
Details -
LD0110x1v-C460
Height (mm): 32
Lamp Life (hrs): 50000
Mains Voltage (V): 120-240
Input Voltage Range (V): 120-240
Output Current (mA): 460
Lamp Wattage (W): 10
Length (mm): 147
Width (mm): 50
Details -

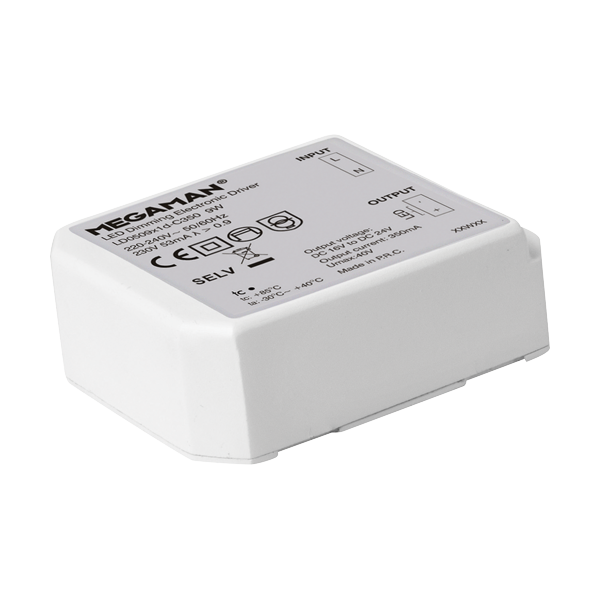

LD0509x1d-C350
Height (mm): 20
Lamp Life (hrs): 50000
Mains Voltage (V): 230
Input Voltage Range (V): 220-240
Output Current (mA): 350
Length (mm): 62
Width (mm): 46
Height (mm): 20
Details -

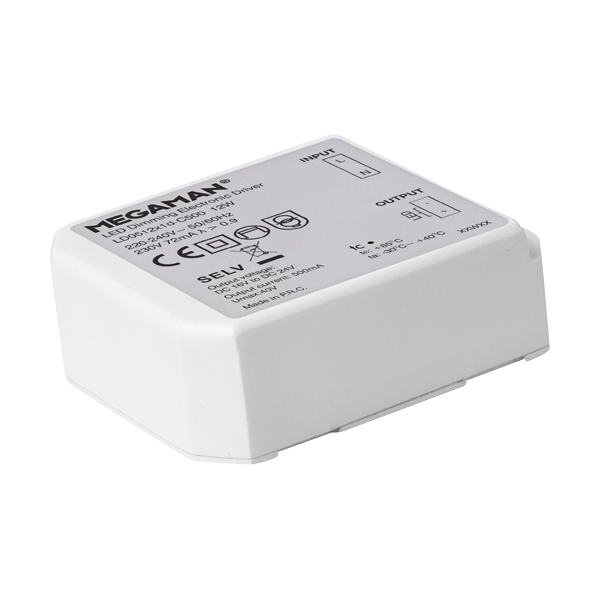

LD0512x1d-C500
Height (mm): 20
Lamp Life (hrs): 50000
Mains Voltage (V): 230
Input Voltage Range (V): 220-240
Output Current (mA): 500
Length (mm): 62
Width (mm): 46
Height (mm): 20
Details -
LD0436x1-C1050
Height (mm): 35
Lamp Life (hrs): 50000
Mains Voltage (V): 230
Input Voltage Range (V): 180-260
Output Current (mA): 1050
Length (mm): 123
Width (mm): 79
Height (mm): 35
Details -
LD0424x1-C700
Height (mm): 35
Lamp Life (hrs): 50000
Mains Voltage (V): 220-240
Input Voltage Range (V): 180-260
Output Current (mA): 700
Lamp Wattage (W): 24
Length (mm): 123
Width (mm): 79
Details -
LD0425x1-C700
Height (mm): 35
Lamp Life (hrs): 50000
Mains Voltage (V): 230
Input Voltage Range (V): 180-260
Output Current (mA): 700
Max. System Wattage (W): 31
Length (mm): 123
Width (mm): 79
Details -

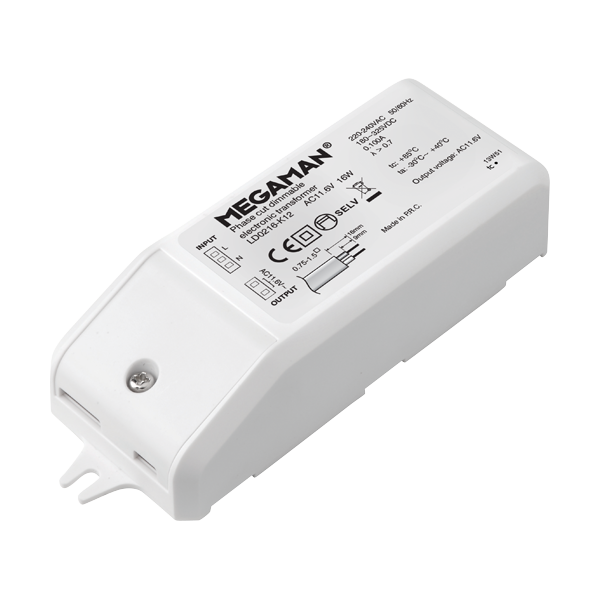

LD0216-K12
Height (mm): 32
Lamp Life (hrs): 50000
Mains Voltage (V): 220-240
Input Voltage Range (V): 180-260
Output Current (mA): 1380
Lamp Wattage (W): 16
Length (mm): 147
Width (mm): 50
Details -
LD0212x1-C350
Height (mm): 25
Lamp Life (hrs): 50000
Mains Voltage (V): 230
Input Voltage Range (V): 180-260
Output Current (mA): 350
Max. System Wattage (W): 16
Length (mm): 116
Width (mm): 55
Details -
LD0217x1-C500
Height (mm): 25
Lamp Life (hrs): 50000
Mains Voltage (V): 220-240
Input Voltage Range (V): 180-260
Output Current (mA): 500
Lamp Wattage (W): 17
Length (mm): 116
Width (mm): 55
Details -
LD0219x1-C500
Height (mm): 25
Lamp Life (hrs): 50000
Mains Voltage (V): 230
Input Voltage Range (V): 180-260
Output Current (mA): 500
Max. System Wattage (W): 22
Length (mm): 116
Width (mm): 55
Details -
LD0208x1d-C350
Height (mm): 25
Lamp Life (hrs): 50000
Mains Voltage (V): 220-240
Input Voltage Range (V): 120-260
Output Current (mA): 350
Lamp Wattage (W): 8
Length (mm): 100
Width (mm): 45
Details -
LD0214x1d-C350
Height (mm): 25
Lamp Life (hrs): 50000
Mains Voltage (V): 220-240
Input Voltage Range (V): 180-260
Output Current (mA): 350
Lamp Wattage (W): 14
Length (mm): 116
Width (mm): 55
Details -
LD0106-K12
Height (mm): 25
Lamp Life (hrs): 50000
Mains Voltage (V): 220-240
Input Voltage Range (V): 180-260
Output Current (mA): 500
Lamp Wattage (W): 6
Length (mm): 100
Width (mm): 45
Details
