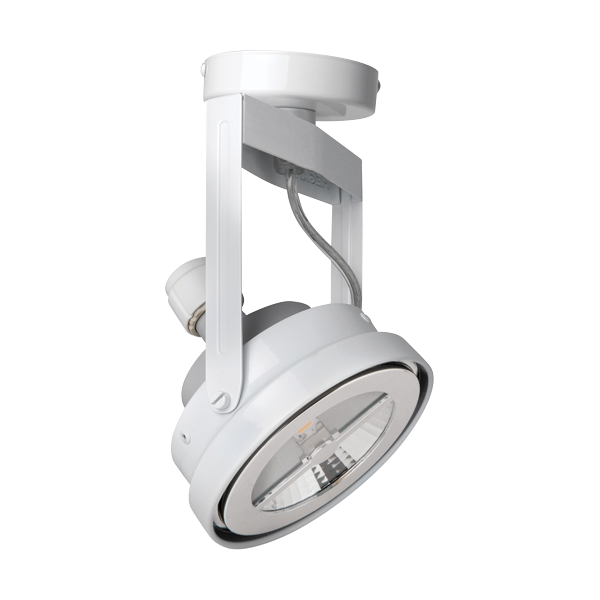

TOBY Track Lighting (AR111) - Surface Mounted Version




White (WH21)
Silver (SV23)
Black (BK21)
Gold (GD21)
Rotate 340
Tilt 170
IP20
Class II




Max. 15W LED AR111 GU10
F13117SM
Photometric Diagram
Lux-cone Diagram
Model no.:

F13117SM

Product Data
Max. Wattage (W) 15
Light Source LED AR111
Lamp Base GU10
Rotating Angle (°) 340
Tilting Angle (°) 170
Colour White (WH21), Silver (SV23), Black (BK21), Gold (GD21)
Materials Steel
Protection Class Class II
Dimmable N/A
Weight (g) 310
Application Galleries, Hotels, Residential applications, Restaurants, Retail outlets
Performance Data
IP Rating IP20

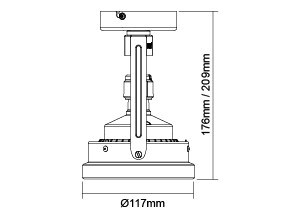

Product Dimensions
Diameter (mm) 117
Height (mm) 176
