LED Converters & Transformers

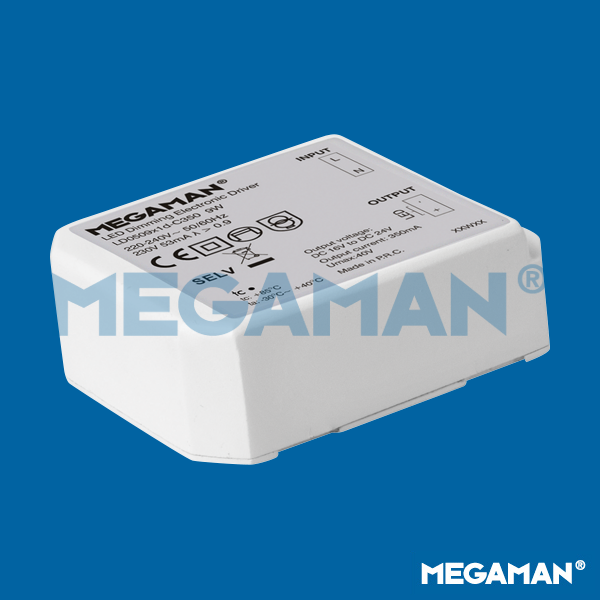

LD0509x1d-C350
| Electrical Data | |
| Mains Input Voltage (V) | 230 |
| Input Voltage Range (V) | 220-240 |
| Output Voltage (V) | DC 16-24 |
| Output Current (mA) | 350 |
| Power Factor (λ) | > 0.9 |
| Product Data | |
| Product Wattage (W) | n/a |
| Ambient Temperature Range (Ta) | -30°C to +40°C |
| Maximum Casing Temperature (Tc) | 85°C |
| Weight (g) | 102 |
| Performance Data | |
| Rated Life (hrs) | 50000 |
| Product Dimensions | |
| Length (mm) | 62 |
| Width (mm) | 46 |
| Height (mm) | 20 |
| Push-in Terminals (mm2) | 0.75-1.5 |
| Fixing Bracket for Screws | M4 |
