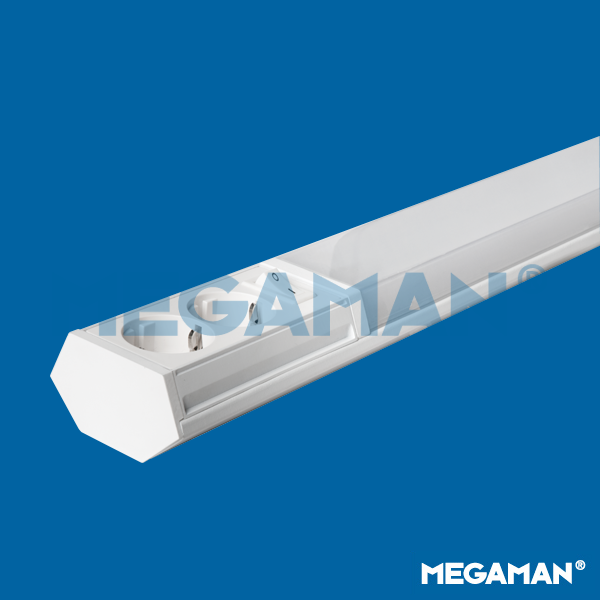

KETO Batten (Integrated)

Model no.:


Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60
Input Current (mA) 70
Power Factor (λ) >0.9
Product Data
Product Wattage (W) 14.5
Light Source Integrated LED-6500
Beam Angle (°) 110
Colour Temperature (K) Warmwhite (2800K), Coolwhite (4000K)
Colour Render Index (Ra) Ra80
Colour White (WH26)
Materials Aluminium housing with polycarbonate
Protection Class CL I
Colour Consistency (SDCM) 6
Dimmable no
Operating Temperature -30°C to +40°C
Ambient Temperature Range (Ta) 40
Switching Cycles (times) 100000
Weight (g) 1186
Application Cabinets, Display Shelves, Kitchens, Light Troughs
Performance Data
Luminous Flux (lm) 1450
Rated Useful Luminous Flux (lm) 1660
Luminous Efficacy (lm/W) 100
Luminous Flux (lm) 1450
Rated Life (hrs) 40000
Rated Life (hrs) 40000
IP Rating IP21/IP21
Product Dimensions
Length (mm) 1020
Width (mm) 75
Height (mm) 44
