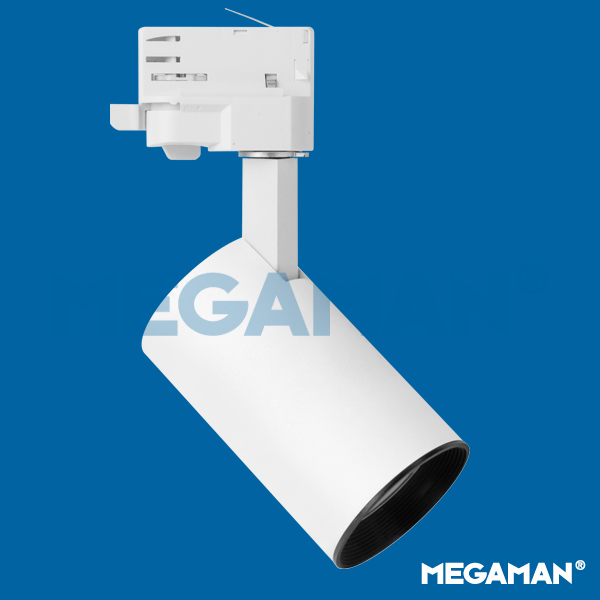

Integrated LED Luminaire
FTK70800v0-db-ru-25°
FTK70800v0-db-ru-45°
FTK70800v0-db/ru
| Electrical Data | |
| Voltage (V) | 220-240V |
| Power Factor (λ) | > 0.9 |
| Product Data | |
| Product Wattage (W) | 24 |
| Beam Angle (°) | 25°, 45° |
| Rotating Angle (°) | 330 |
| Tilting Angle (°) | 90 |
| Colour Render Index (Ra) | ≥ Ra80 |
| Colour | White (WH12), Silver (SV12), Black (BK12) |
| Materials | Aluminium |
| Colour Consistency (SDCM) | ≤3 |
| Operating Temperature | -30°C to +40°C |
| Weight (g) | 480 |
| Application | Hotels, Museums, Restaurants, Shop Lighting, Showrooms |
| Performance Data | |
| Luminous Efficacy (lm/W) | 67 [3000K], 71 [4000k] |
| Max. Luminous Intensity (cd) | 8200 [25°], 3300 [45°] |
| Luminous Flux (lm) | "1600 [3000K], 1700 [4000K]" |
| Luminous Efficacy (lm/W) | 67 [3000K], 71 [4000k] |
| Rated Life (hrs) | 50000 hrs at L70 B50 at Ta 25 °C |
| Product Dimensions | |
| Diameter (mm) | 65 |
| Height (mm) | 198 |
|
Remarks Accessories: LA10098 Honeycomb louvre
|
|
Technologies
-
The innovative Dual Beam Technology empowers commercial users to have two beam angles in one single lamp/luminaire. It offers high flexibility of changing the beam angles onsite for different application requirements.
