Control Gear (PDF)- FTK71400v0-db+025D045D+830+BK
- FTK71400v0-db+025D045D+840+BK
- FTK71400v0-db+025D045D+865+BK
- FTK71400v0-db+025D045D+830+WH
- FTK71400v0-db+025D045D+840+WH
- FTK71400v0-db+025D045D+865+WH
- FTK71400v0-db+025D045D+830+BK24
- FTK71400v0-db+025D045D+840+BK24
- FTK71400v0-db+025D045D+830+WH26
- FTK71400v0-db+025D045D+840+WH26
-
Containing Product (PDF)
- FTK71400v0-db+025D045D+830+BK
- FTK71400v0-db+025D045D+840+BK
- FTK71400v0-db+025D045D+865+BK
- FTK71400v0-db+025D045D+830+WH
- FTK71400v0-db+025D045D+840+WH
- FTK71400v0-db+025D045D+865+WH
- FTK71400v0-db+025D045D+830+BK24
- FTK71400v0-db+025D045D+840+BK24
- FTK71400v0-db+025D045D+830+WH26
- FTK71400v0-db+025D045D+840+WH26
-
Light Source (PDF)
Family Datasheet
Product Datasheet
FTK71400v0-db+025D045D
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 |
| Input Current (mA) | 210 |
| Power Factor (λ) | >0.9 |
| Product Data | |
| Product Wattage (W) | 37 |
| Light Source | Integrated LED-4000 |
| Beam Angle (°) | 25/45 |
| Colour Render Index (Ra) | Ra80 |
| Protection Class | CL I |
| Colour Consistency (SDCM) | 4 |
| Dimmable | no |
| Operating Temperature | -30°C to +40°C |
| Ambient Temperature Range (Ta) | 40 |
| Switching Cycles (times) | 100000 |
| Weight (g) | 740 |
| Application | Hotels, Museums, Restaurants, Shop Lighting, Showrooms |
| Performance Data | |
| Luminous Flux (lm) | 3500 |
| Rated Useful Luminous Flux (lm) | 3200 |
| Luminous Efficacy (lm/W) | N/A |
| Rated Life (hrs) | 50,000hrs L70B50@Ta25°C |
| IP Rating | IP20/IP20 |

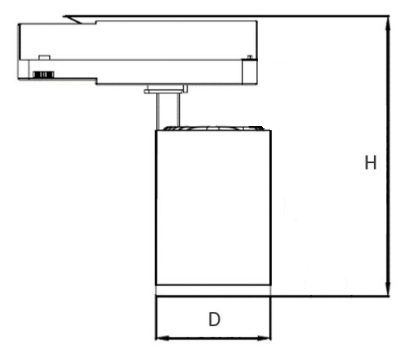

| Product Dimensions | |
| Diameter (mm) | 90 |
| Height (mm) | 196 |
Technologies
-
The innovative Dual Beam Technology empowers commercial users to have two beam angles in one single lamp/luminaire. It offers high flexibility of changing the beam angles onsite for different application requirements.
