PLANEX Recessed Downlight (GX53)




White (WH11)
Silver (SV22)
Black (BK11)
Gold (GD41)
IP20
Class II




Max. 7W LED GX53
L0504RC
Photometric Diagram
Model no.:

L0504RC

Product Data
Max. Wattage (W) 7

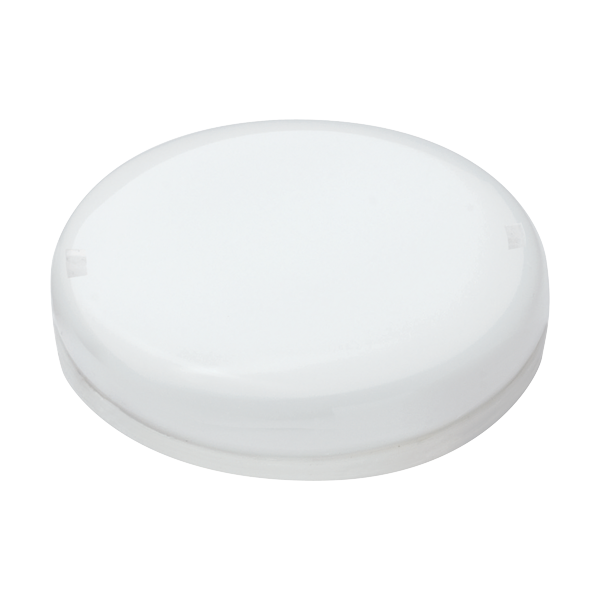

Light Source LED GX53
Lamp Base GX53
Colour White (WH11), Silver (SV22), Black (BK11), Gold (GD41)
Materials Polycarbonate
Protection Class Class II
Dimmable N/A
Weight (g) 75
Application Bathrooms, Display Shelves, Kitchen Cabinets and Counters, Light Boxes, Study Rooms, Wardrobes, Workstations
Performance Data
IP Rating IP20
Product Dimensions
Diameter (mm) 104
Height (mm) 39
Cut-out (mm) Ø90
