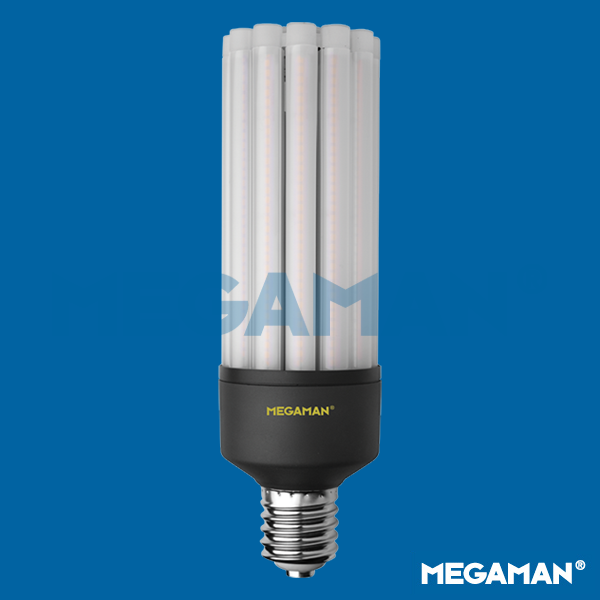

164W/80W E40 11500lm 5000K Ra80 Non-Dim

CLUSTERLITE®

D
4kV Surge Protection





Spectral Power Distribution
Spectral Power Distribution
     Family Datasheet
     Product Datasheet
Product Code:

LH201080-OPv00+E40+850+V0240

Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60 Hz
Current (mA) 360
Power Factor (λ) ≥ 0.90
Starting Time (sec) < 0.5 s
Warm-up Time Up to 60% of the Full Light Output (sec) Instant
Total Harmonic Distortion 6.8%
Product Data
Lamp Base E40
Product Wattage (W) 80
Equivalent Wattage (W) 164
Colour Temperature (K) 5000
Colour Render Index (Ra) Ra80
Colour Consistency (SDCM) 6
Dimmable No
Operating Temperature -30°C to +40°C
Maximum Casing Temperature (Tc) 75°C
Switching Cycles (times) > 100000
Weight (g) 689
Application Car parks, Commercial Areas, High-ceilings, Industrial Areas, Streets Areas
Performance Data
Total Luminous Flux (lm) 11500
Luminous Efficacy (lm/W) 144
Rated Life (hrs) 50000
Product Dimensions
Diameter (mm) 80
Width (mm) 80
Height (mm) 265

Technologies

  • 4kV Surge Protection
    4kV surge protection.
