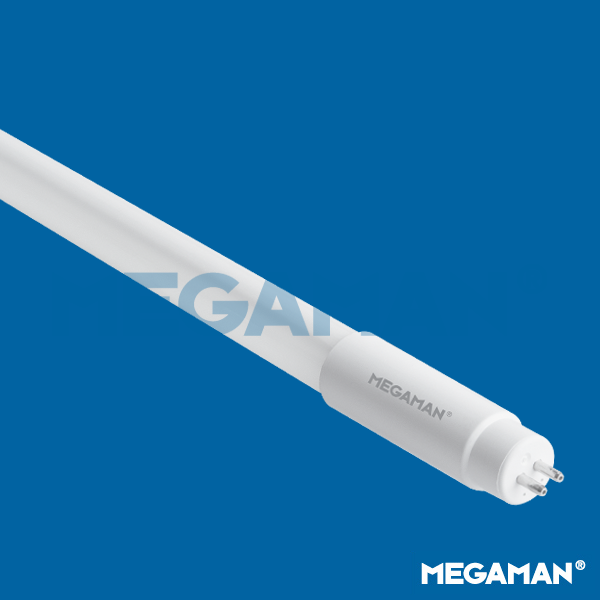

Please open the web page in browser.26W G5 3600lm 3000K Ra80 1500mm
T5 - AC Mains
IES File
Family Datasheet
Product Datasheet
LT201260/ac-15v00+G5+830+V0240
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 Hz |
| Current (mA) | 160 |
| Power Factor (λ) | ≥ 0.90 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 60% of the Full Light Output (sec) | Instant |
| Product Data | |
| Lamp Base | G5 |
| Product Wattage (W) | 26 |
| Equivalent Wattage (W) | 35 |
| Colour Temperature (K) | 3000 |
| Colour Render Index (Ra) | Ra80 |
| Colour Consistency (SDCM) | 6 |
| Dimmable | No |
| Operating Temperature | -30°C to +45°C |
| Switching Cycles (times) | > 100000 |
| Weight (g) | 180 |
| Application | Commercial Areas, Commercial buildings, Corridors, Industrial Buildings, Offices |
| Performance Data | |
| Luminous Efficacy (lm/W) | 138 |
| Rated Life (hrs) | 50000 |
| Product Dimensions | |
| Diameter (mm) | 18 |
| Width (mm) | 18 |
| Height (mm) | 1463 |
