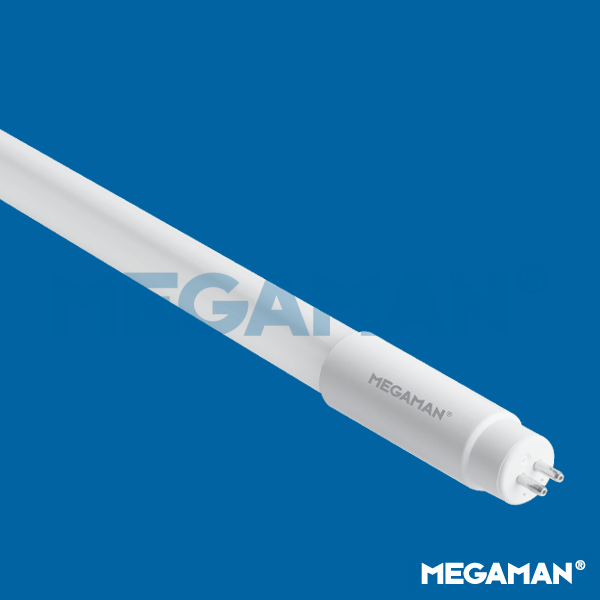

T5 - AC Mains

E





Spectral Power Distribution
Spectral Power Distribution
     Family Datasheet
     Product Datasheet
Product Code:

LT201075/ac-06v00+G5+840+V0240

Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60 Hz
Current (mA) 45
Power Factor (λ) ≥ 0.90
Starting Time (sec) < 0.5 s
Warm-up Time Up to 60% of the Full Light Output (sec) Instant
Product Data
Lamp Base G5
Product Wattage (W) 7.5
Equivalent Wattage (W) N/A
Colour Temperature (K) 4000
Colour Render Index (Ra) Ra80
Colour Consistency (SDCM) 6
Dimmable No
Operating Temperature -30°C to +45°C
Switching Cycles (times) > 100000
Weight (g) 78
Application Commercial Areas, Commercial buildings, Corridors, Industrial Buildings, Offices
Performance Data
Luminous Efficacy (lm/W) 147
Rated Life (hrs) 50000
Product Dimensions
Diameter (mm) 18
Width (mm) 18
Height (mm) 563
