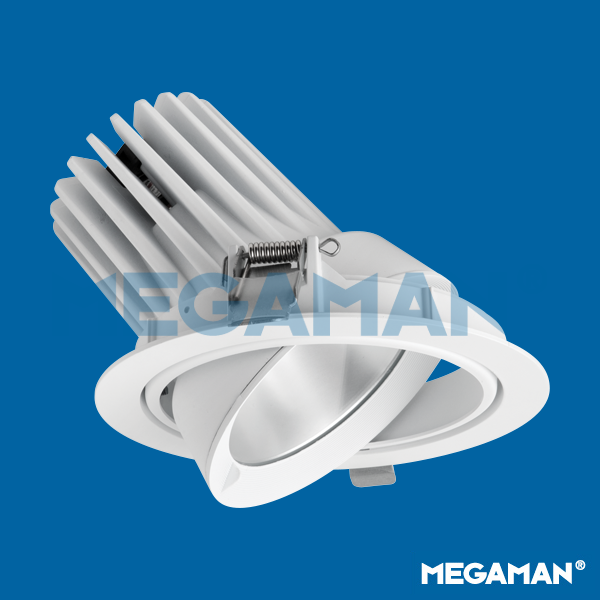

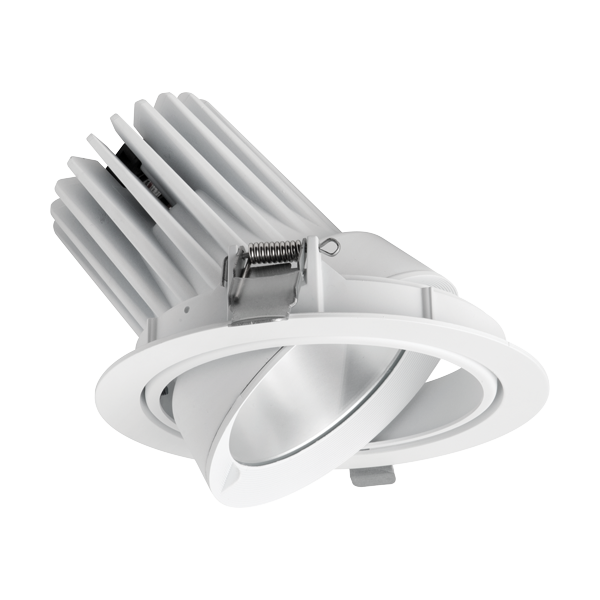

VITO Adjustable Recessed Downlight (RDx) - Perfect White DIMMABLE


Perfect White


White (WH26)
Silver (SV26)
Beam 35
Beam 60
Tilt 30
IP20
Class III




Luminaire with LED Module TECOH® RDx RD0555M-p (1050mA)
F29349RC-p-35°
Photometric Diagram
Lux-cone Diagram
F29349RC-p-60°
Photometric Diagram
Lux-cone Diagram
     Specification Sheet
Product Code:

F29349RC-p

Electrical Data
Nominal Voltage (V) DC 42- 48V
Input Current (mA) 1050
Product Data
Product Wattage (W) 48
Light Source TECOH® RDx RD0555M-p with input current 1050mA
Beam Angle (°) 35, 60
Tilting Angle (°) 30
Colour Temperature (K) Warmwhite (3000K)
Colour Render Index (Ra) Ra82
Colour White (WH26), Silver (SV26)
Materials Metal housing
Protection Class Class III
Dimmable Yes
Built-in Cooling Passive
Suggested Driver LD0445x1-C1050
Weight (g) 1045
Application Commercial buildings, Department Stores, Exhibition Booths, Galleries and Museums, Shops and Boutiques
Performance Data
Max. Luminous Intensity (cd) 7000 [35°], 4100 [60°]
Luminous Flux (lm) 3100 [3000K]
Luminous Efficacy (lm/W) 65 [3000K]
Rated Life (hrs) 50000
IP Rating IP20

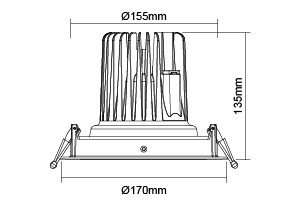

Product Dimensions
Diameter (mm) 170
Height (mm) 135
Cut-out (mm) Ø155
Remarks
Capable of linear dimming when working with DALI, DSI or 1-10V dimming driver, and the dimming performance depends on the specification of driver. The wattage declared is the wattage of the luminaire without driver; the system wattage will be dependent on driver choice.

Technologies

  • Perfect White
    Offering retailers a distinct advantage to enhance textiles by bringing whites to life while still offering superb efficacy and energy efficiency, compared to traditional light sources.
