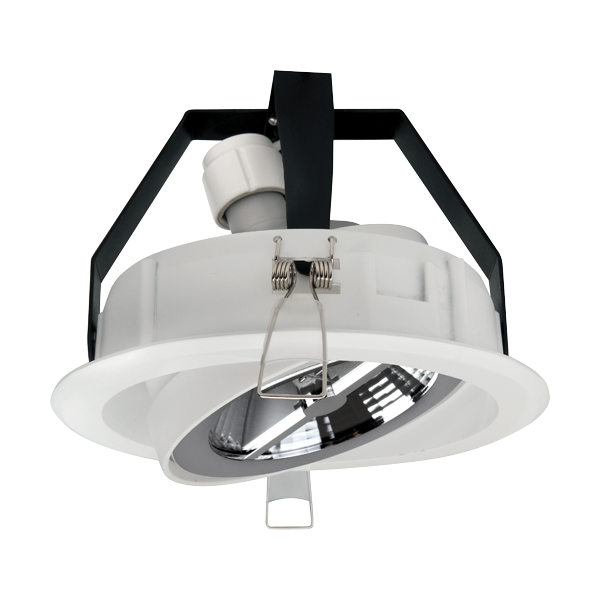

CONXENTO Adjustable Recessed Downlight (AR111)




White (WH21)
Silver (SV23)
Black (BK21)
Gold (GD21)
Rotate 360
Tilt 22
IP20
Class II




Max. 15W LED AR111 GU10
F12217RC
Photometric Diagram
Lux-cone Diagram
Model no.:

F12217RC

Product Data
Max. Wattage (W) 15

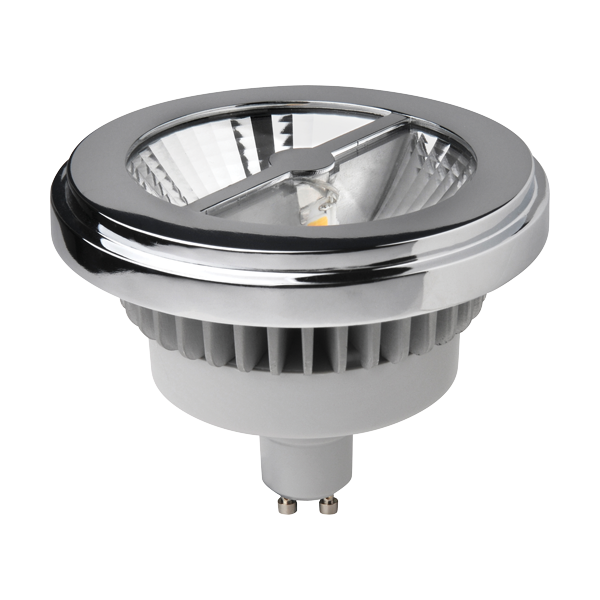

Light Source LED AR111
Lamp Base GU10
Rotating Angle (°) 355
Tilting Angle (°) 22
Colour White (WH21), Silver (SV23), Black (BK21), Gold (GD21)
Materials Aluminium
Protection Class Class II
Dimmable N/A
Weight (g) 390
Application Galleries, Corridors, Hotels, Residential applications, Restaurants, Retail outlets
Performance Data
IP Rating IP20

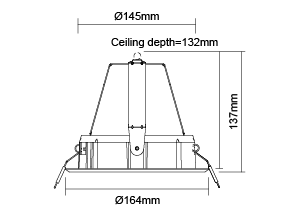

Product Dimensions
Diameter (mm) 164
Height (mm) 137
Cut-out (mm) Ø145
