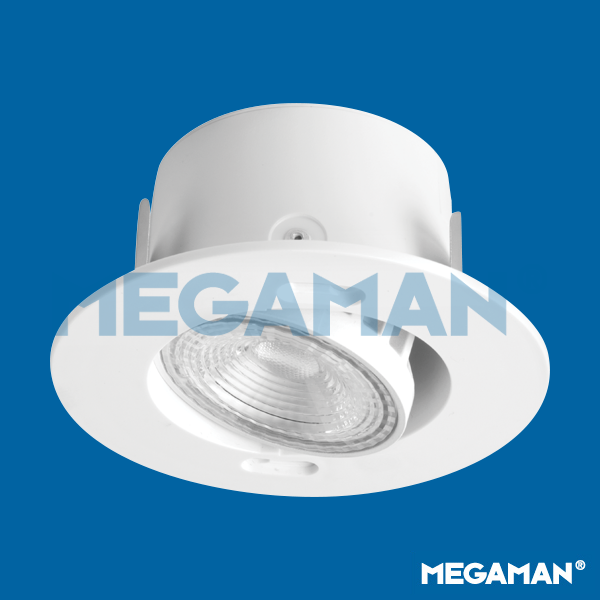

ANNA Recessed Downlight (Integrated)


U-DIM


White (WH26)
Beam 36
Tilt 30
IP44
IP20
Class II




Model no.:

FDS70000v0-dm

Electrical Data
Voltage (V) 220-240V
Power Factor (λ) > 0.7
Product Data
Product Wattage (W) 5
Beam Angle (°) 36
Tilting Angle (°) 30
Colour Temperature (K) Warmwhite (2800K), Coolwhite (4000K)
Colour Render Index (Ra) > Ra80
Colour White (WH26)
Materials Polycarbonate
Protection Class Class Ⅱ
Colour Consistency (SDCM) ≤6
Dimmable 100-5%
Operating Temperature -30°C to +40°C
Weight (g) 102
Application Retails, Hotels, Offices, Restaurants
Performance Data
Max. Luminous Intensity (cd) 950
Luminous Flux (lm) 420
Luminous Efficacy (lm/W) 84
Rated Life (hrs) 35000hrs at L70 B50 at Ta 25°C

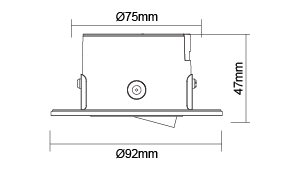

Product Dimensions
Diameter (mm) 94
Height (mm) 45
Cut-out (mm) Ø68
Remarks
Designed for the installation with prefabricated junction box and recess mounting.


Accessories:

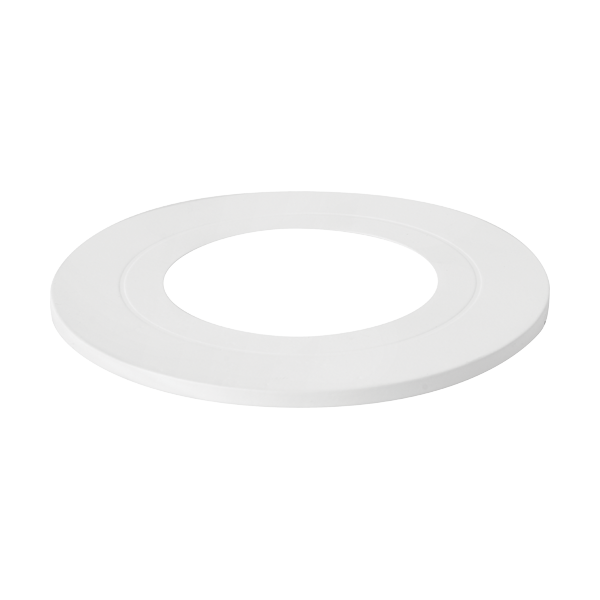

LA10052 Circular Cover

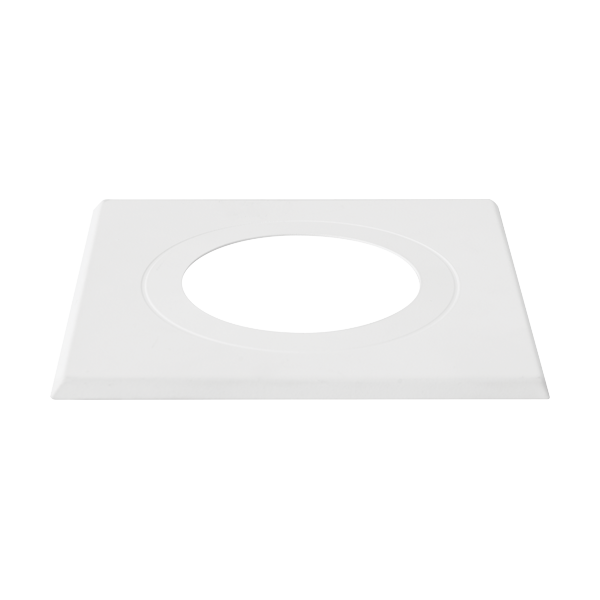

LA10053 Square Cover

Technologies

  • U-DIM
    Compatible with the widest range of existing dimmers, whether they are leading-edge or trailing edge dimmers, with enhanced dimming range of 100% to 5%.
