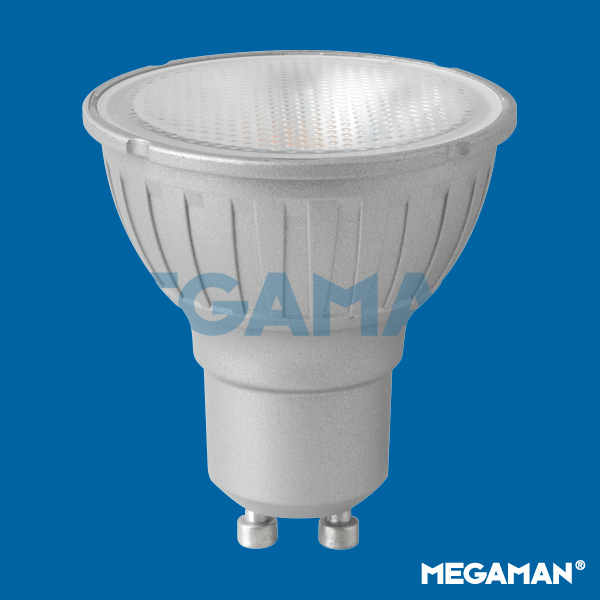

PAR16 5.5W GU10 2800K DIMMABLE

Smart Series

     Family Datasheet
     Product Datasheet
Product Code:

LR4605.5dDG-WFL-GU10-2800K-230V

Electrical Data
Voltage (V) 220-240V
Product Data
Lamp Base GU10
Product Wattage (W) 5.5
Reflector PAR16
Beam Angle (°) 35
Colour Temperature (K) Warmwhite (2800K)
Colour Render Index (Ra) Ra82
Dimmable 100-10%
Operating Temperature -30°C to +40°C
Mercury Content (mg) N/A
Weight (g) 63
Application Hospitality
Performance Data
Max. Luminous Intensity (cd) 560
Total Luminous Flux (lm) 500
Luminous Flux in 90° cone (lm) 345
Rated Life (hrs) 25000
Product Dimensions
Diameter (mm) 50
Length (mm) 57
Remarks

The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm.

Technologies

  • Dimmable
    Being able to adjust your LEDs with wide selection of dimming range from 100% to 10% or 20% for perfect atmosphere and/or scene setting – warm and bright, dim and cozy.
