LED Modules: TECOH® FLx

PERFECT REPLACEMENT FOR CONVENTIONAL FLUORESCENT LIGHTING

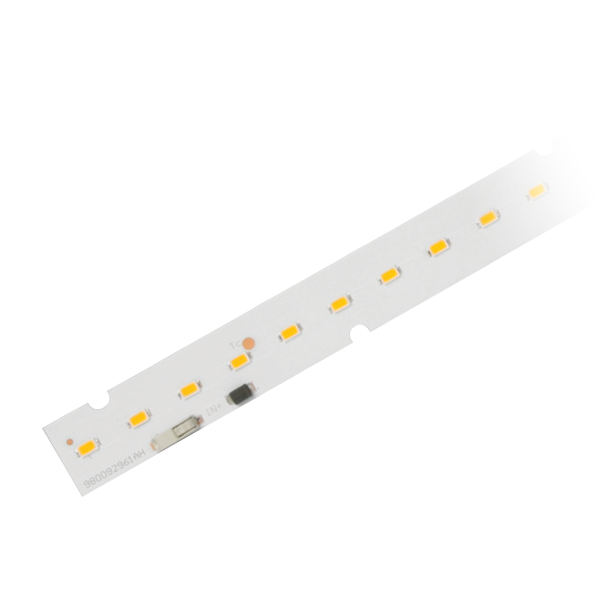

Designed as a perfect replacement for conventional fluorescent lighting in new luminaires, the MEGAMAN® TECOH® FLx is a rectangular-shaped range of self-cooling LED modules that do not need specially designed heat-sinks. To be used in linear and flat luminaires with diffuse covers, this innovative LED module is perfect for a wide range of general lighting applications such as direct lighting in offices, schools, meeting rooms, corridors, supermarkets and manufacturing halls.

The FLx 8mm strips are ideal for use in sidelit panels. The high output versions with lumen packages up to 4000lm are specially designed for industrial applications where more light output is required.

ZHAGA INTERCHANGABILITY AND FLEXIBLE LENGTHS FOR MULTIPLE APPLICATIONS

Where applicable, the modules are designed in line with the ZHAGA Interface Specification Book 7. Different lumen packages and sizes are available for different lighting installations and combinations. The lengths of 280mm or 560mm can be mixed and matched to make up to the regular fluorescent tube lengths of 0.6m, 1.2m and 1.5m.

HIGHLY EFFICIENT AND LONG LASTING LIGHTING

With energy labelling of A+ and A++ throughout the range, the TECOH® FLx combines efficacies up to 170lm/W for the Gen 3 series, with a long lamp life (L70 B10) of 50,000 hours.

The key to creating an LED lighting scheme that looks good for years to come, is in ensuring that over their lifespan all of the products are performing within an acceptable tolerance in terms of colour. With over six years of experience with LED arrays and due to MEGAMAN®'s control of the phosphor/LED blend MEGAMAN® TECOH® FLx products have an excellent colour consistency of 3 SDCM, and a high colour rendering of up to Ra85.

DIMMABLE SOLUTION

TECOH® FLx modules allow for linear dimming without colour shift. Offering linear dimming from 1% - 100% with a compatible driver and dimming system. Even when dimmed down to less than 10% light output the colour temperature remains consistent with negligible colour shift. The method of dimming control used is dependent upon the capabilities of the driver fitted.

EXPERT LIGHTING FOR A VARIETY OF APPLICATIONS

Simple interconnection of the TECOH® FLx LED modules makes them a flexible solution suitable for continuous line configurations without gaps and dark zones. Designed to operate on standard 700mA constant current drivers, and with a wide range of operating temperatures from -30°C to +50°C the TECOH® FLx is perfect for a wide range of general lighting applications.
