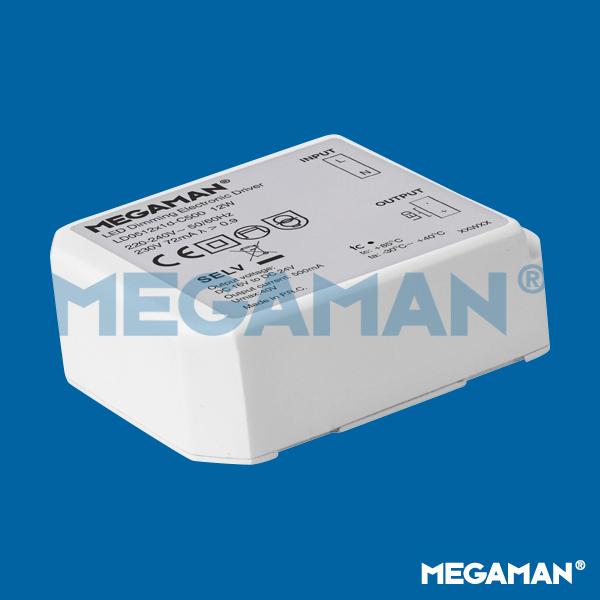

LD0512x1d-C500

LED Converters & Transformers






     Specification Sheet
Product Code:

LD0512x1d-C500

Electrical Data
Mains Input Voltage (V) 230
Input Voltage Range (V) 220-240
Output Voltage (V) DC 16-24
Output Current (mA) 500
Power Factor (λ) >0.9
Product Data
Product Wattage (W) n/a
Ambient Temperature Range (Ta) -30°C to +40°C
Maximum Casing Temperature (Tc) 85°C
Weight (g) 103
Performance Data
Rated Life (hrs) 50000
Product Dimensions
Length (mm) 62
Width (mm) 46
Height (mm) 20
