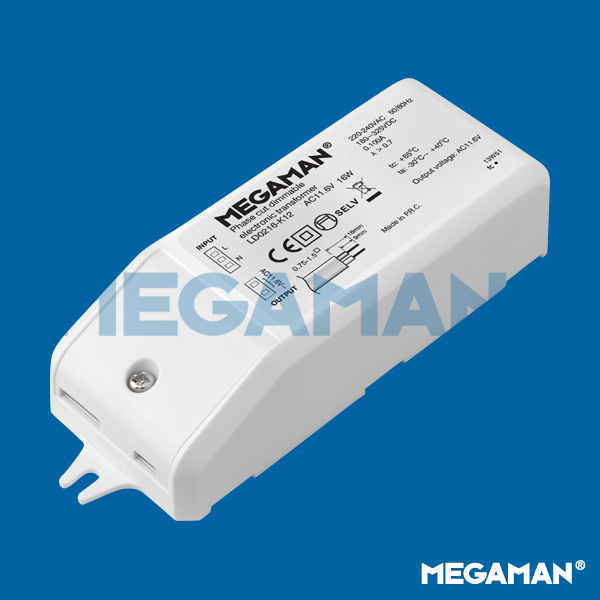

LD0216-K12

LED Converters & Transformers

     Specification Sheet
Product Code:

LD0216-K12

Electrical Data
Mains Input Voltage (V) 220-240
Input Voltage Range (V) 180-260
Output Voltage (V) AC 12V
Output Current (mA) 1380
Power Factor (λ) >0.7
Product Data
Product Wattage (W) n/a
Max. System Wattage (W) 19
Lamp Wattage (W) 16
Lamps Supported All MEGAMAN® G4, MR11, MR16 and AR111 lamps with input voltage of AC 12V and maximum wattage of 16W
Dimmable 100-1%
Ambient Temperature Range (Ta) -30°C to +40°C
Maximum Casing Temperature (Tc) 85°C
Weight (g) 135
Performance Data
Rated Life (hrs) 50000
Luminaires of Protection Class Class II
Product Dimensions
Length (mm) 147
Width (mm) 50
Height (mm) 32
Push-in Terminals (mm2) 0.75-1.5
Wire Preparation (mm) 8
Fixing Bracket for Screws M4
Remarks
The product is intended to be used as a lamp control gear.
With open circuit, short circuit and over loaded protections.
The LED lamp work with this transformer and a conventional leading-edge dimmer, it is capable of linear dimming from 100% to 10%.
