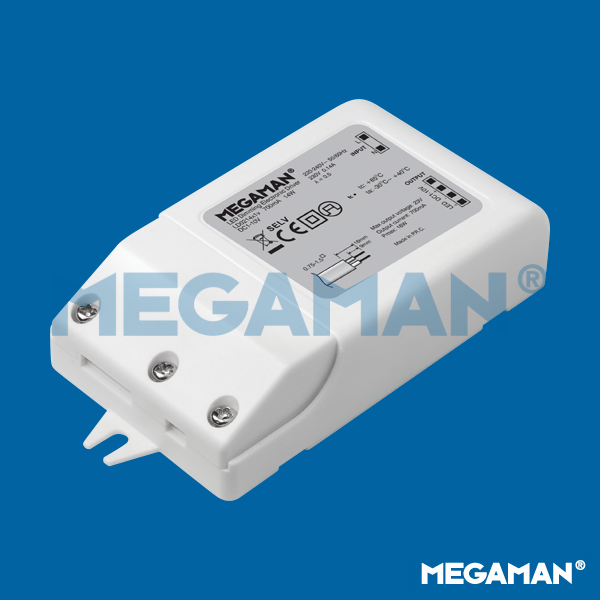

LD0214x1d-C350

LED Converters & Transformers

     Specification Sheet
Product Code:

LD0214x1d-C350

Electrical Data
Mains Input Voltage (V) 220-240
Input Voltage Range (V) 180-260
Output Voltage (V) DC 30-40V
Output Current (mA) 350
Power Factor (λ) >0.9
Product Data
Product Wattage (W) n/a
Max. System Wattage (W) 18
Lamp Wattage (W) 14
Dimmable 100-10%
Performance Data
Rated Life (hrs) 50000
Product Dimensions
Length (mm) 116
Width (mm) 55
Height (mm) 25
Remarks
The LED lamp works with this converter and a conventional leading-edge dimmer. It is capable of linear dimming from 100% to 10%.
