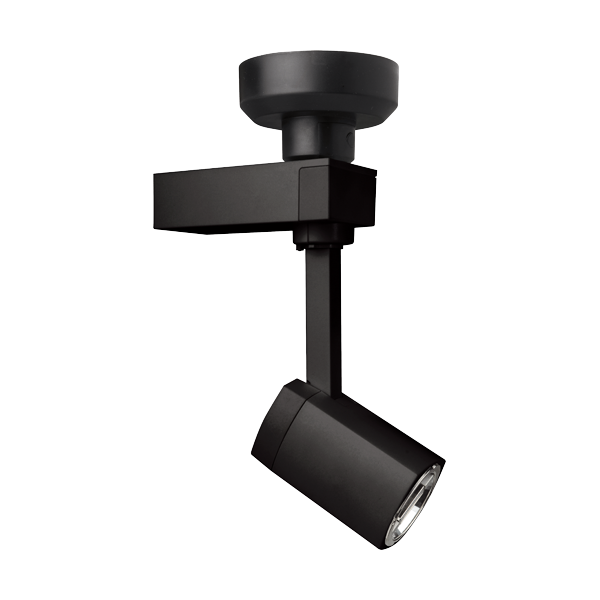

MOSAIC Track Lighting (MR16) - Surface Mounted Version




White (WH12)
Silver (SV22)
Black (BK12)
Rotate 330
Tilt 90
IP20
Class III




Max. 10W LED MR16 GU5.3
F22241SM
Photometric Diagram
Lux-cone Diagram
Model no.:

F22241SM

Product Data
Max. Wattage (W) 10
Light Source LED MR16
Lamp Base GU5.3
Rotating Angle (°) 330
Tilting Angle (°) 90
Colour White (WH12), Silver (SV22), Black (BK12)
Materials Polycarbonate
Protection Class Class III
Dimmable N/A
Weight (g) 360
Application Galleries, Hotels, Reception Areas, Restaurants, Retail outlets, Showrooms
Performance Data
IP Rating IP20

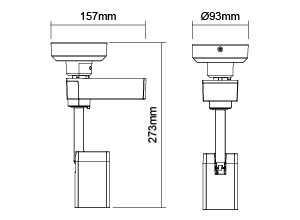

Product Dimensions
Diameter (mm) 93
Length (mm) 157
Height (mm) 273
